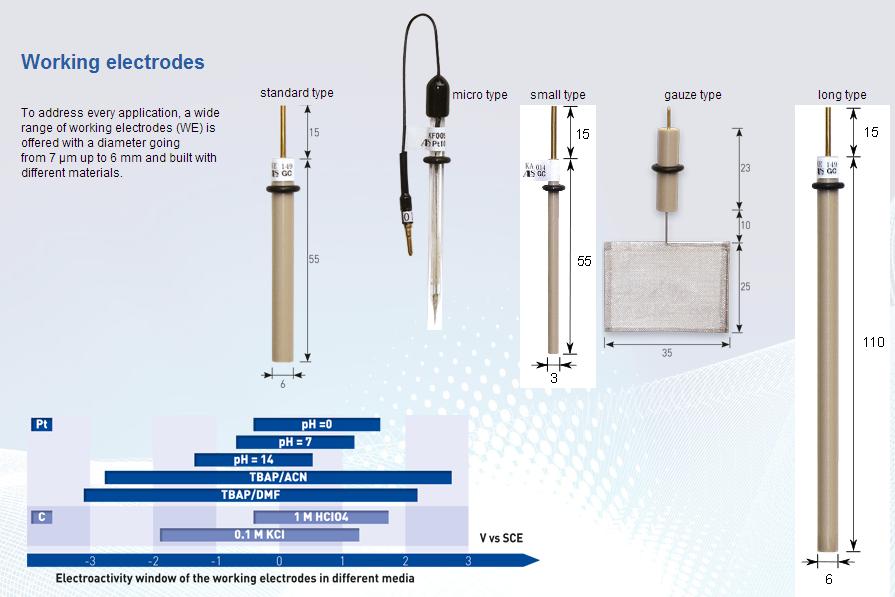

Working electrodes
To address every application, a wide range of working electrodes (WE) is offered with a diameter going from 7 µm up to 6 mm and built with different materials.

			Catalog No.	Isolation	Type	OD	Electrode size
Carbon	LGCE glassy carbon electrode		A-012744	PEEK	long	6 mm	3 mm
	GCE glassy carbon electrode		A-002417	PEEK	standard	10 mm	5 mm
			A-002012	PEEK	standard	6 mm	3 mm
			A-012297	PEEK	standard	6 mm	1.6 mm
			A-002411	PEEK	standard	6 mm	1 mm
	SGCE glassy carbon electrode		A-012298	PEEK	small	3 mm	1.6 mm
			A-002412	PEEK	small	3 mm	1 mm
	MCE micro carbon fiber electrode		A-002002	glass	micro	4 mm	33 µm
			A-002007	glass	micro	4 mm	7 µm
	Pyrolytic graphite electrode	Basal Plane	A-002252	PEEK	standard	6 mm	3 mm
		Edge Plane	A-002253	PEEK	standard	6 mm	3 mm
	PFCE carbon electrode		A-002408	PEEK	standard	6 mm	3 mm
			A-002409	PEEK	standard	6 mm	1 mm
	SPFCE carbon electrode		A-011854	PEEK	small	3 mm	1 mm
Platinum	Platinum gauze electrode		A-002250	PEEK	gauze	80 mesh	25 x 35 mm
	LPTE platinum electrode		A-012745	PEEK	long	6 mm	3 mm
	PTE platinum electrode		A-002420	PEEK	standard	10 mm	5 mm
			A-002422	PEEK	standard	6 mm	3 mm
			A-002013	PEEK	standard	6 mm	1.6 mm
	SPTE platinum electrode		A-002313	PEEK	small	3 mm	1.6 mm
	MPTE micro Platinum electrode		A-002009	glass	micro	4 mm	100 µm
			A-002003	glass	micro	4 mm	25 µm
			A-002015	glass	micro	4 mm	15 µm
			A-002005	glass	micro	4 mm	10 µm
Gold	Gold gauze electrode		A-002251	PEEK	gauze	100 mesh	25 x 35 mm
	LAUE gold electrode		A-012746	PEEK	long	6 mm	3 mm
	AUE gold electrode		A-002418	PEEK	standard	10 mm	5 mm
			A-002421	PEEK	standard	6 mm	3 mm
			A-002014	PEEK	standard	6 mm	1.6 mm
	SAUE gold electrode		A-002314	PEEK	small	3 mm	1.6 mm
	MAUE micro gold electrode		A-002010	glass	micro	4 mm	100 µm
			A-002004	glass	micro	4 mm	25 µm
			A-002006	glass	micro	4 mm	10 µm
Silver	AGE silver electrode		A-002416	PEEK	standard	10 mm	5 mm
			A-002419	PEEK	standard	6 mm	3 mm
			A-002011	PEEK	standard	6 mm	1.6 mm
	SAGE silver electrode		A-002315	PEEK	small	3 mm	1.6 mm
Palladium	PDE palladium electrode		A-002019	PEEK	standard	6 mm	1.6 mm
	SPDE palladium electrode		A-002319	PEEK	small	3 mm	1.6 mm
Nickel	NIE nickel electrode		A-002016	PEEK	standard	6 mm	1.5 mm
	MNIE micro nickel electrode		A-002273	glass	micro	4 mm	100 µm
Copper	CUE copper electrode		A-002017	PEEK	standard	6 mm	1.6 mm
	CUE copper electrode		A-012584	PEEK	standard	6 mm	3 mm
	MCUE copper electrode		A-002271	glass	micro	4 mm	25 µm
Iron	FEE iron electrode		A-002018	PEEK	standard	6 mm	1.5 mm
	FEE iron electrode		A-012585	PEEK	standard	6 mm	3 mm
Carbon paste	CPE carbon paste electrode hole depth 4 mm		A-002210	PEEK	standard	6 mm	3 mm
	SCPE carbon paste electrode hole depth 4 mm		A-002223	PEEK	micro	3 mm	1.6 mm
	CPO carbon paste oil base 1 g		A-001010


Working electrodes maintenance

	Catalog No.

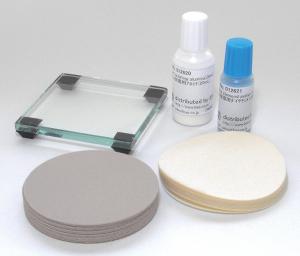

PK-3 electrode polishing kit	A-011975

Contents
0.05 µm polishing alumina (20 mL)	A-001050
1 µm polishing diamond (10 mL)	A-002054
Glass plate (1 piece)	A-002249
Alumina polishing pad (10 pieces)
Diamond polishing pad (10 pieces)

Replacement item
Alumina polishing pad (20 pieces)	A-001040
Diamond polishing pad (20 pieces)	A-001041
Emery paper UF800 (20 pieces)	A-012611
Coarse polishing pad (20 pieces)	A-001042
