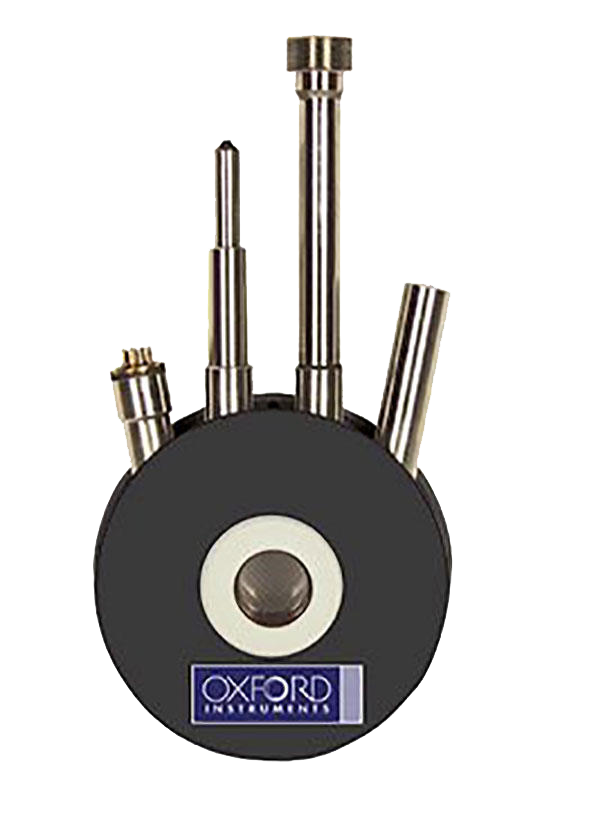

Image #1.
MicrostatN - 77 K Nitrogen-Cooled Cryostat system designed for microscopy applications.
- Temperature range: 77 to 500 K
- Temperature stability: ± 0.5 K
- Liquid nitrogen consumption rate: 0.5 l/hr (nominal)
- Room Temperature to base temperature: < 10 min with pre-cooled transfer siphon
- Sample change time: approx. 30 min (cryostat must be warmed up to access the sample space)
- Sample position stability: designed to give positional stability of the sample holder of approximately 1 µm
- Cryostat weight: 0.4 kg
Download pdf brochure |
