Aspiration systems AA 24

<< Back | Lab EquipmentItem #AA 24

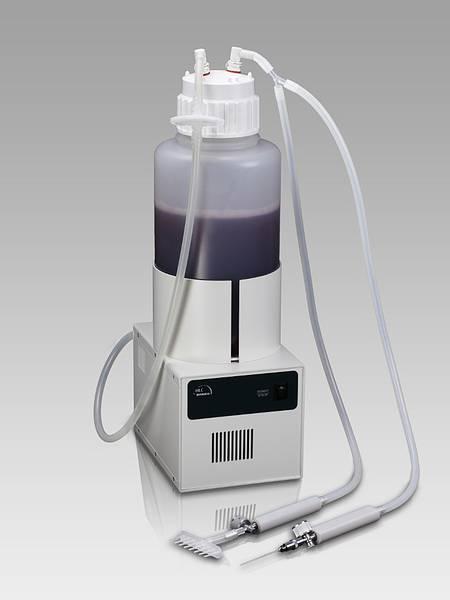

Aspiration systems AA 24

As standard for 2 workplaces, will cut in half the costs per user.

The Automatic
- When suction is stopped with the handle the pump switches off automatically.
- When vacuum is needed the pump switches on again.
- Required vacuum is always available.
- The handle serves for different suction devices. It is delivered as standard for taking a Pasteur pipette



Components
- The housing made of long living and easy care specially hard anodised aluminium with powerful menbrame pump, vacuum controller and mounted safety bottle holder is a compact unit.
- The bottle consists of thick-walled, sturdy propylene and is autoclavable.
- The wide-necked screw cap has 2 fast locks which automatically close when the hose connections are loosened to the suction or vacuum side.
- The filled bottle thus is firmly closed andcan be transported for disposal without danger.
- A ventilation element gives the necessary pressure equalization when autoclaving.
- A safety filter between collection bottle and the vacuum pump protects the pump and the surrounding.
- 3 m of silicone tubing make it possible that the collection bottle and the vacuum pump can be placed outside the Laminar Flow and thus do not diminsh the working area.





Vacuum pump





Suction capacity



30 l / min (air)

Final vacuum



100 mbar abs.

Material of pump head



Aluminium

Material of membrane



Viton







Housing





Dimensions (W x L x H)



170 x 220 x 155 mm

Height with bottle AA 04



508 mm

Weight



approx. 7 kg

Electric supply



115 V / 230 V, 50 Hz




Download pdf brochure
