Confocal White Light Sensor

The CHR sensors are high end confocal sensors, based on the principal of chromaticáaberration. They offer maximum accuracy and high speed. The sensors are available withávarious resolutions, ranges and numeric apertures.á

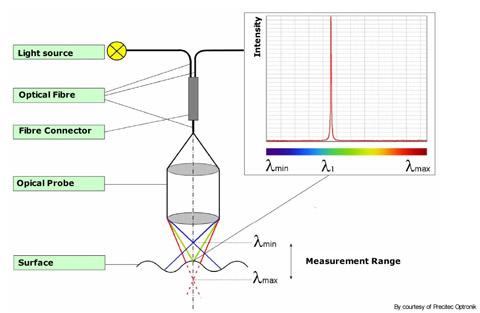

Light consisting of different wavelengths is projected on different height levels. The spectrometer analyzes intensity vs. wavelength. A height reading is generated when the intensity of a certain wavelength reaches a maximum in the spectrometer.


MODEL

RESOLUTION

MEASUREMENT RANGE

WORKING DISTANCE

SPOT SIZE
P-CHR-100

0.003 Ám

100 Ám 1.9 mm 3.5 Ám
P-CHR-300 0.01 Ám 300 Ám 4.5 mm

5 Ám

P-CHR-350 0.012 Ám 350 Ám 8 mm

5 Ám

P-CHR-400

0.014 Ám

400 Ám 15.3 mm

4 Ám

P-CHR-600 0.02 Ám 600 Ám 6.5 mm

4 Ám

P-CHR-1000

0.035 Ám

1000 Ám 20.8 mm

3.5 Ám

P-CHR-2000 0.07 Ám 2000 Ám 61 mm

12.5 Ám

P-CHR-2000 0.07 Ám 2000 Ám 13.5 mm

12 Ám

P-CHR-3000 0.10 Ám 3000 Ám 22.5 mm

12 Ám

P-CHR-6000 0.20 Ám 6000 Ám 36 mm

16 Ám

P-CHR-8000 0.28 Ám 8000 Ám 36.3 mm

30 Ám

P-CHR-10000 0.30 Ám 10 mm 70 mm

24 Ám

P-CHR-12000 0.40 Ám 12 mm 54 mm

30 Ám

P-CHR-15000

0.50 Ám

15 mm 57 mmh 20 Ám
P-CHR-25000

0.80 Ám

25 mm 80 mm 25 Ám
