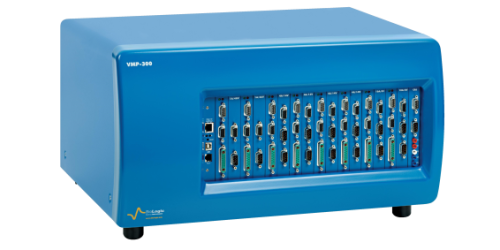

VMP-300 - The ultimate multichannel electrochemical workstation

It is the most modular chassis of our product range offering 16 slots for potentiostats/galvanostats/FRA boards and/or booster boards.

The channel and booster boards can be combined in the chassis either to have many channels or to reach high currents. As a multichannel workstation, each channel is completely independent from the others making the unit a multi-users workstation. The VMP-300 is supplied with a built-in calibration board in an additional slot.

The chassis can accommodate booster kits that can be selected in our extended range (1 A, 2 A, 4 A, 10 A). These current boosters can be connected in parallel to reach high current level such as 150 A with 15 boosters of 10 A.

Electrochemical Impedance Spectroscopy (EIS) measurements can be added as an option to the VMP-300. Low current sensitivity can be improved using the Ultra Low Current option (down to 1 pA range with 76 aA resolution). This option may be added on each of the 16 channels.

For more details see PDF Brochure


Download pdf brochure
